nglib C++ question : meshing parameters for Mesh granularity

Main Forum Old-Forum - do not post here
1

Hello,

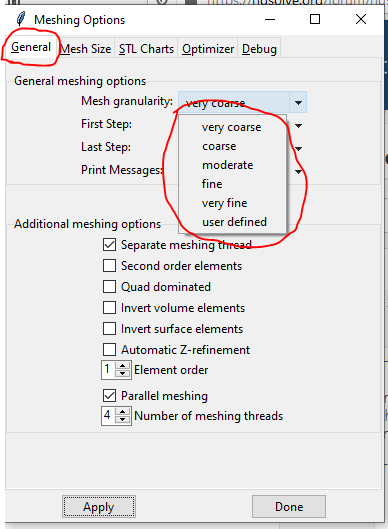

In Netgen GUI, there is an option to set Mesh granularity ( very coarse, coarse, Moderate, Fine etc). I am wondering what are their respective meshing parameters? So that I can set in Ng_Meshing_Parameters and achieve the same in C++.

Thanks

388×529 16.2 KB

2

Have a look at python/meshing.py. There the python equivalents are defined.
Best
Christopher

3

Thanks!

Some of the parameters,

chartdistfac
linelengthfac
surfmeshcurvfac

are missing in nglib, are those significant for occ mesh?

Thanks Again!

4

These are stl meshing parameters.
Best
Christopher
