Hello everyone. I’ve been trying to build a 2d mesh with boundary layers on only two edges.
The problem is that sometimes my code deletes parts of the boundary on the creation of the mesh. I think it may have to do with the BoundaryLayer2 function, but I’m not sure about it.

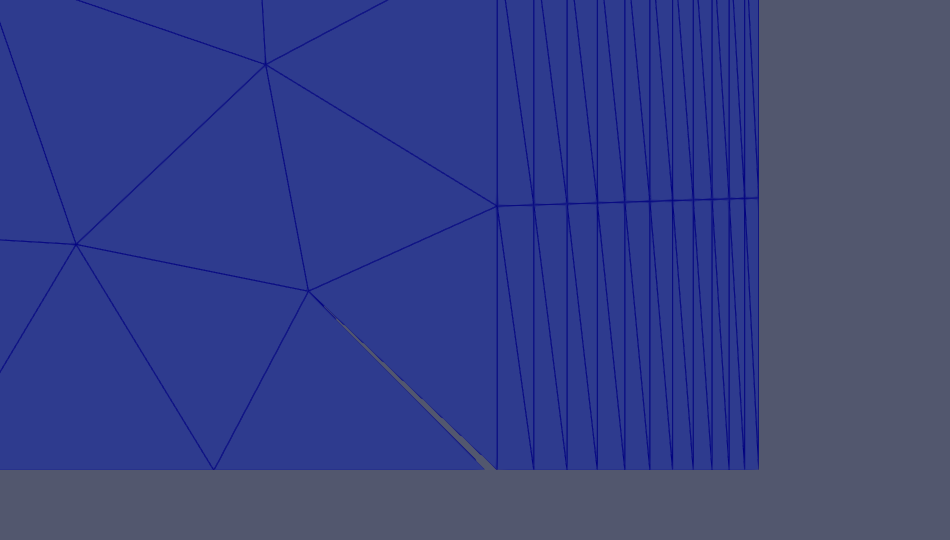

Here is an example of what is happening:
As you can see, there is a sliver of the domain that is not covered by any element. This image was obtained with the attached code on what would be the file Mesh_04.stl. I also include the code in this post.
from ngsolve import *
def Create2DMesh(hmax, thicknesses, name=""):
geo = unit_square
ngmsh = geo.GenerateMesh(maxh=hmax)
ngmsh.BoundaryLayer2(domain=1,
thicknesses=thicknesses,
make_new_domain=False,
boundaries=[2, 3])
ngmsh.Split2Tets()
ngmsh.Export(name+".stl", "STL Format")
return Mesh(ngmsh)
if __name__ == '__main__':
for i in range(5):
mesh_name = f"Mesh_0{i}"
hmax = 0.5*2.0**(-i)
# Set layer parameters
layer_thickness = 0.03
n_layers = 2*(i+1) + 1
growth_ratio = 1.1
h0 = layer_thickness*(1 - growth_ratio)/(1 - growth_ratio**n_layers)
thicknesses = [h0*growth_ratio**j for j in range(n_layers)]
mesh = Create2DMesh(hmax=hmax, thicknesses=thicknesses, name=mesh_name)
pass
I would really appreciate any help with this.
Best,
Joaquín.
mesh-issue.py (877 Bytes)
